What the client was solving for
The client did not need "a bottling line." They needed a line configuration that could reach market before peak season, avoid over-buying imported scope that local fabricators could produce at lower delivered cost, and still leave the plant with a supportable operating setup once the startup pressure was over. They had been quoted on a fully imported turnkey from two Chinese OEMs. Both quotes lacked detail on water treatment, MCC, conveyors, platforms, and the realistic landed cost into Johannesburg. One quote did not mention freight at all.
The operating constraints that shaped the design
- Building footprint already fixed — existing warehouse conversion, 32 m × 18 m clear span, 6 m headroom. The line had to fit; the building was not going to move.
- Local raw-water quality variable — municipal supply with seasonal turbidity. The pre-treatment had to be sized for the worst month, not the average.
- Three-shift target by month four — a 1-shift launch was acceptable; running 24/5 within 16 weeks of SAT was non-negotiable for the business case.
- Maintenance team in early days — two qualified technicians, both unfamiliar with imported PLC platforms. The control philosophy had to be hire-for-able.
- Cash-flow profile — owner-financed expansion, with a strong preference for milestone-tied payments rather than the typical 30/50/20 China structure.
Why the project was structured as a hybrid line
Imported specialist equipment made sense where process precision and packaged-machine performance mattered most — the blow-moulder, the rotary filler/capper block, the labeller, the shrink-wrap packer. These are catalogued machine classes where Chinese OEMs have field track records measured in thousands of units. Replicating them locally is expensive, slow, and rarely competitive on per-unit cost.
Local fabrication made more sense where bulky structures, panels, and conveyor interfaces would otherwise pay heavy freight for low value-per-kilogram steel. Local panels also let the maintenance team work with components their existing spares cupboard already covered.
The hard part — and the value CISH adds — is owning the split properly. The interfaces between offshore and local scope are where projects bleed weeks: who supplies the panel-to-machine cabling, whose drawings define the conveyor heights, who is on the floor when the imported labeller meets the locally built infeed.
Decision rule applied: if it exists as a catalogued specialist machine with hundreds of units in the field, source from China. If it is bespoke steelwork, panels, or platforms with a low value-per-kg ratio, fabricate locally. Anything in between is decided by lead time, B-BBEE scoring weight, and who will service it in year three.
The sourcing split, line by line
| Element | Source | Why this side |
|---|---|---|
| PET stretch-blow moulder (6-cavity) | China OEM | Specialist; thousands of units in field globally |
| Rotary filler / capper block | China OEM | Specialist rotary engineering; local equivalents not available at price/quality |
| Labeller (OPP roll-fed) | European OEM via China integrator | Best technical fit at this price point; warranty supported via local distributor |
| Shrink-wrap multi-pack and palletiser | China OEM | Standard machine class; competitive landed cost |

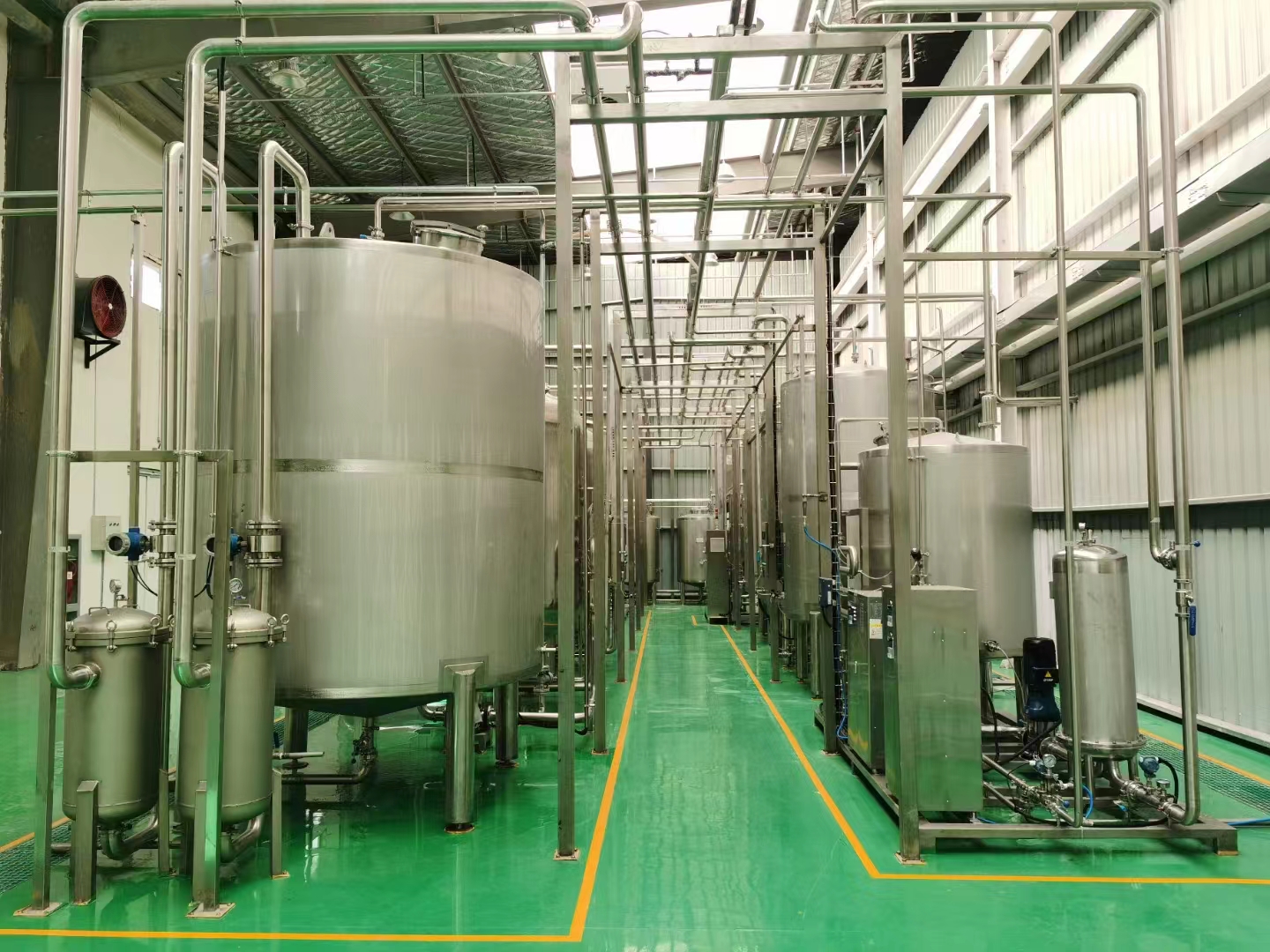

| Water treatment (multi-media, AC, UF, UV, ozone) | Local SA specialist | Local service is critical for water plants; SA component standards |
| Air compressors + dryers (HP & LP) | Local SA dealer (named brand) | Local service network + spares cupboard |
| MCC, main control panel, distribution boards | Local SA panel builder | Local component standards, local maintenance team can work on it |
| PLC platform (Siemens S7-1500) | Local system integrator | Standard SA skill base; long-term spares and integrator pool |
| Conveyors between machines | Local fabricator | Heavy steel, low value/kg; custom heights to building |
| Catwalks, access platforms, guard rails | Local fabricator | Must fit the building geometry exactly |
| CIP skid (utility scope) | Local SA supplier | Local service; component spares already on team's cupboard |
Delivery sequence — 26 weeks PO to SAT
The critical insight is that hybrid does not mean serial. The China and SA scopes were run as parallel work-streams against a single integrated schedule with shared hold-points.
- Weeks 0–4 — Detailed design + sourcing split frozen. CISH produced a single layout, line BOM, utility schedule and interface document covering both sides. The split was reviewed line-item by line-item with the client before any PO was placed.
- Weeks 4–16 — Parallel build. China OEMs built specialist equipment while local fabricators produced conveyors, platforms, MCC, and water treatment. CISH held weekly status calls in Mandarin and Afrikaans-English, with cross-published photos.
- Weeks 14–16 — Civils and utilities. Plumbing, drainage, raw-water tank, power upgrade, compressed-air ring. Done before the containers arrived rather than after.
- Weeks 17–18 — FAT in China. Client engineer + CISH lead present. The filler and blow-moulder were tested with PET preforms supplied from SA, against an agreed acceptance protocol. One rework loop on the capper torque setting; signed FAT issued.
- Weeks 18–22 — Shipping and customs. FOB Shanghai → Durban → Johannesburg. Five 40' containers. HS classification validated before contract signature; no reclassification surprises.
- Weeks 22–24 — Installation. Local team + 2 visiting Chinese commissioning engineers. Local conveyors and platforms were already in place; imported machines dropped onto known footprints.
- Weeks 24–26 — Hot commissioning, SAT, operator training. Cold runs → water runs → product runs. SAT signed at 11 200 bph sustained against a 12 000 bph nameplate — within the agreed acceptance band.
What changed because the project was hybrid
Cost
Landed at roughly USD 850 000, against a fully imported turnkey quote band of USD 1.0–1.1 million. Net saving driven mostly by local steel, panels and conveyors — the parts where freight and offshore-fabrication margin add up but no engineering advantage exists.
Schedule
26 weeks vs ~34 weeks for a sequential fully imported alternative. The compression came from running China build and local fabrication in parallel against a single design, not from squeezing any one work-stream.
Local-content scoring
~42% of total spend with local suppliers. Material on B-BBEE preferential procurement and AfCFTA documentation. Made a measurable difference on the client's tender position with one large retail customer.
Serviceability
MCC, panels, conveyors, water plant — all locally maintained from day one. The maintenance team did not have to learn five new component brands at once. MTTR on first six months stayed below the client's internal target.
What a buyer should take from this case
For many mid-scale beverage projects in the 6 000–18 000 bph range, the best answer is neither "import everything" nor "build everything locally." The right answer is usually a disciplined hybrid structure with one team owning the interfaces, the startup sequence, and the long-tail support plan. Without single ownership of the interface, hybrid actually increases risk rather than reducing it.
The other lesson: the cost saving is not the headline value. The schedule compression and the maintainability of the result is what makes the project work over a 10-year horizon. Most line owners discover by year three that the parts they imported because they "looked cheaper" are the parts that now hurt them on spares lead time.
Use this filter when judging your own project: if a line block is a catalogued specialist machine (filler, blow-moulder, labeller, palletiser, CNC, injection moulder), default to imported. If it is bespoke steelwork, panels, platforms, conveyors, or utility skids, default to local. Use lead time, B-BBEE weight, and service distance as the tiebreakers in the middle.
How CISH structured the engagement
This project was delivered as a Turnkey Production Lines engagement with embedded Local Design & Manufacturing scope. One contract with the client. CISH carried the supplier risk on the Chinese side and the integration risk on the local side. A single project lead from CISH's Johannesburg office owned the schedule, the interface document, and the SAT.
For buyers earlier in the process, the equivalent reading is Buy from China or fabricate locally? — a decision framework and How to import a production line from China to South Africa.
Frequently asked questions
Would this case apply to a tea or RTD juice line, not just water?
The hybrid logic generalises directly. The hygiene and process scope changes — hot-fill or aseptic adds pre-treatment, UHT, sterile air handling — but the import/local split principles are the same. The water-treatment block becomes a syrup-room and pre-mix block.
What output band does this approach suit?
We see hybrid work cleanly in the 6 000–24 000 bph PET range. Below that, the freight overhead on imported scope dominates and fully local can compete. Above that, imported scope share usually rises because specialist machines at high throughput have no real local equivalent.
Could the client have done this project alone, direct with the Chinese OEMs?
Possibly, but they would have needed strong internal project engineering, FAT discipline in China, and the capacity to manage the local fabricator interfaces in parallel. The fee paid for an accountable single owner was lower than one missed peak season.
How is reliability over time?
Beyond the SAT, what matters is mean time between stoppages and parts availability. The locally maintained scope (water, panels, conveyors) carries no supply-chain risk. The imported scope is covered by a CISH-held spares buffer in Johannesburg for the highest-failure-rate components.
Can CISH share the named client?
Not on a public page. Where a buying decision is genuinely live, we can arrange an NDA reference call with the client engineering lead and share stronger commercial and operating detail under the right conditions.
